We turn physical infrastructure into engineering data.

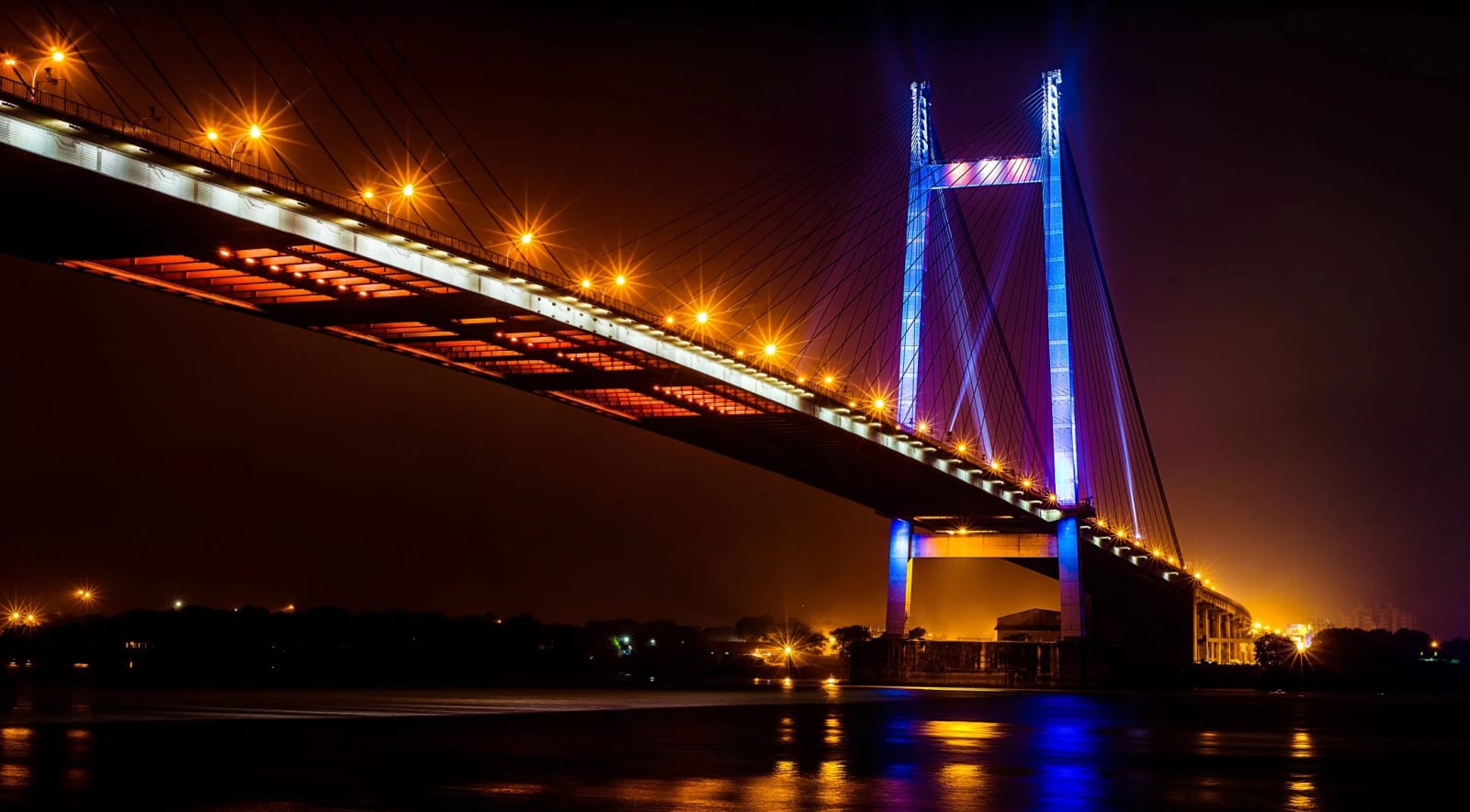

MYTHCON instruments bridges with strain, displacement, tilt, vibration and temperature sensors and streams the data to an engineering dashboard, so changes in structural behaviour can be seen as they develop rather than at the next inspection. Alerts and reports turn measured data into maintenance and safety decisions.

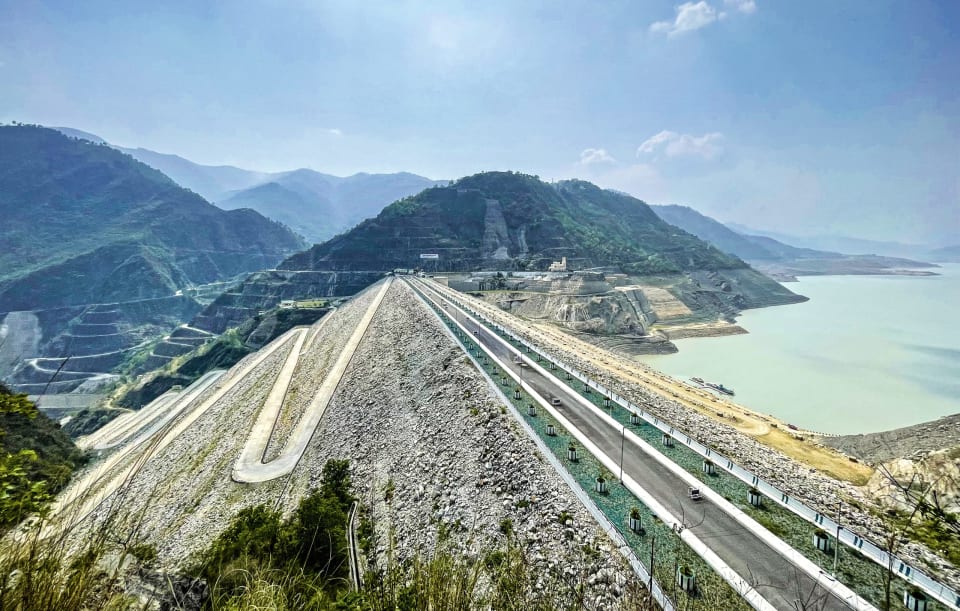

Buildings, dams and tunnels change slowly and are difficult to observe directly. Permanent or temporary instrumentation records movement, tilt, strain and pressure over time, giving owners an evidence-based view of structural condition and early warning of unexpected behaviour.

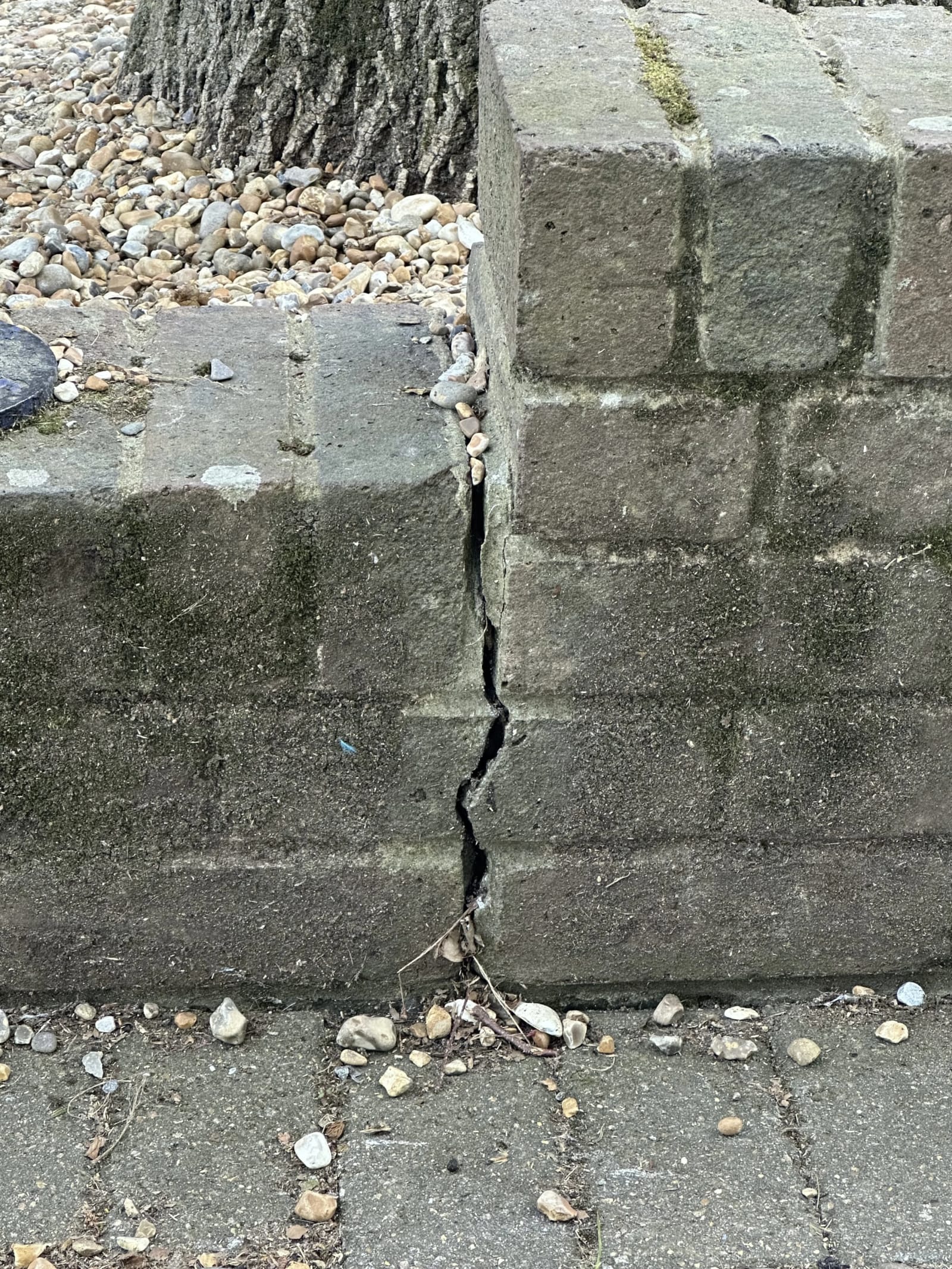

Vibration monitors record ground and structural vibration, for example from construction or traffic activity, while crack sensors track changes in crack width over time. Together they document whether structures remain within agreed limits and whether a crack is active or stable.

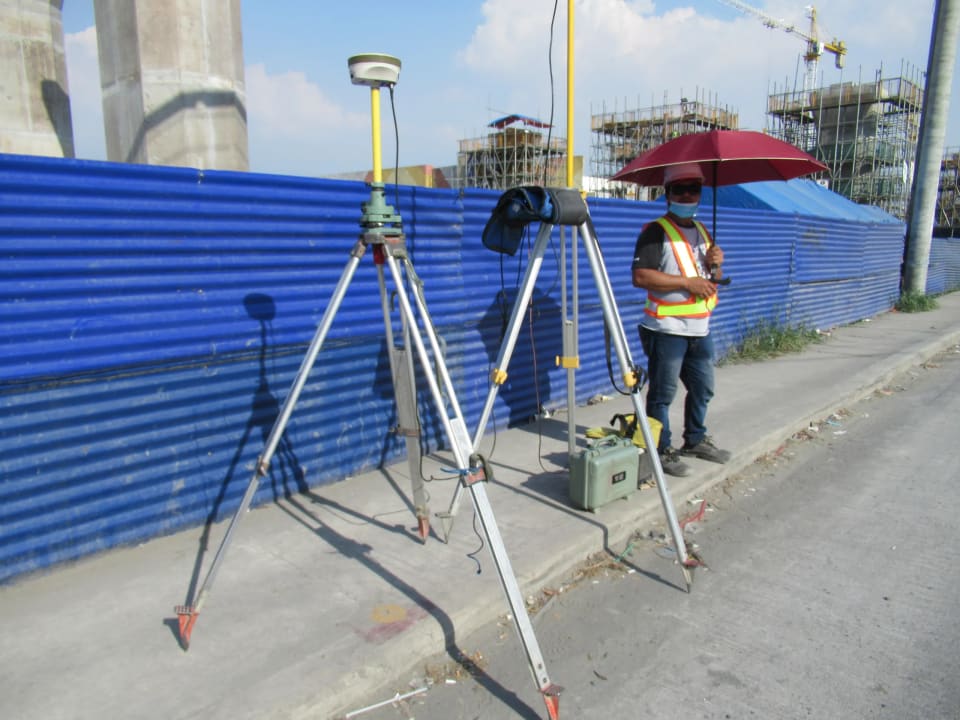

Instrumentation turns ground and structural behaviour into measurable quantities: pore-water pressure, lateral movement, settlement and earth pressure. MYTHCON supplies, installs and reads instruments matched to the monitoring objective.

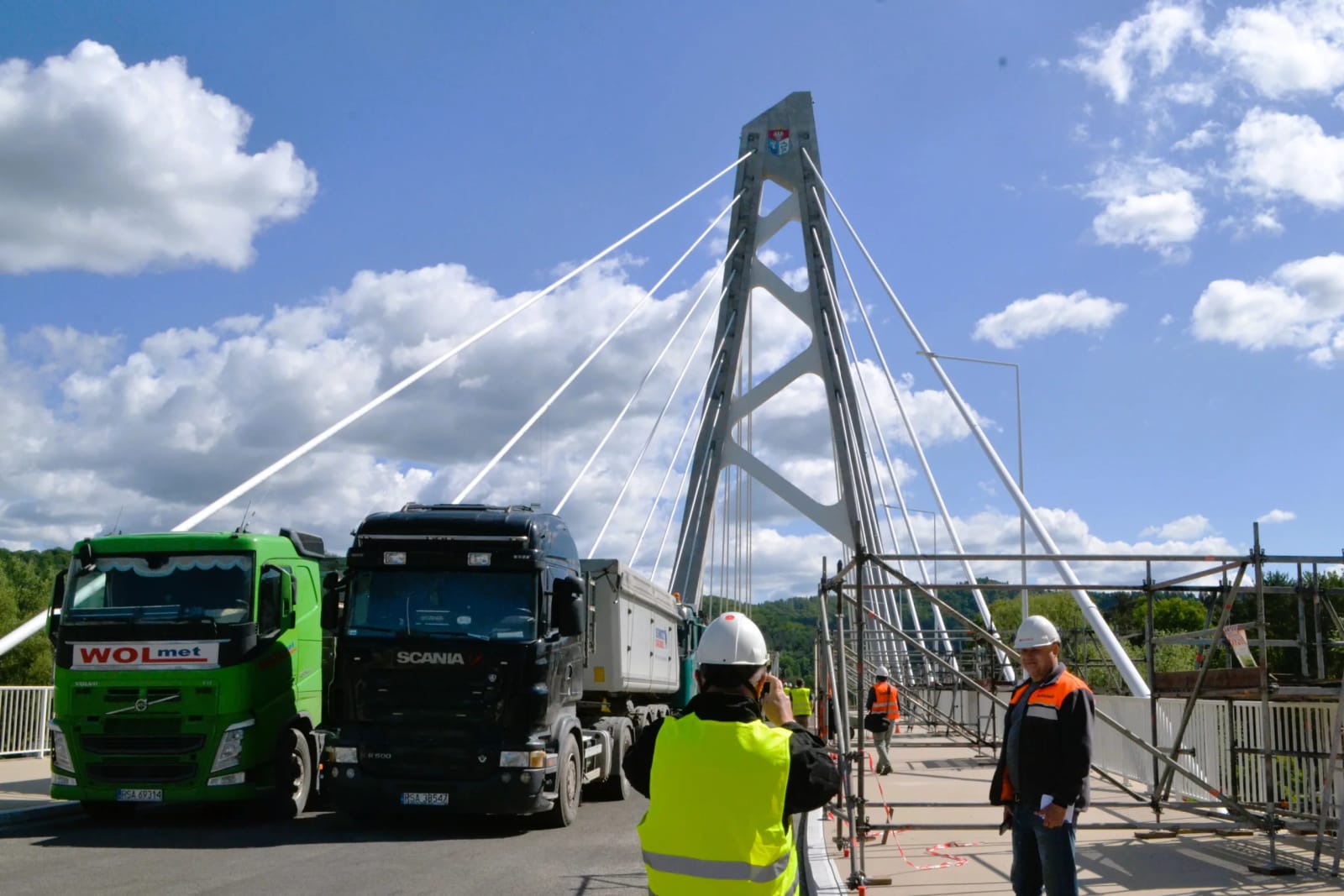

In a bridge load test the span is loaded in a controlled way while deflection, strain and other responses are measured. The results show how the structure really performs and support decisions on load rating, rehabilitation or continued service.

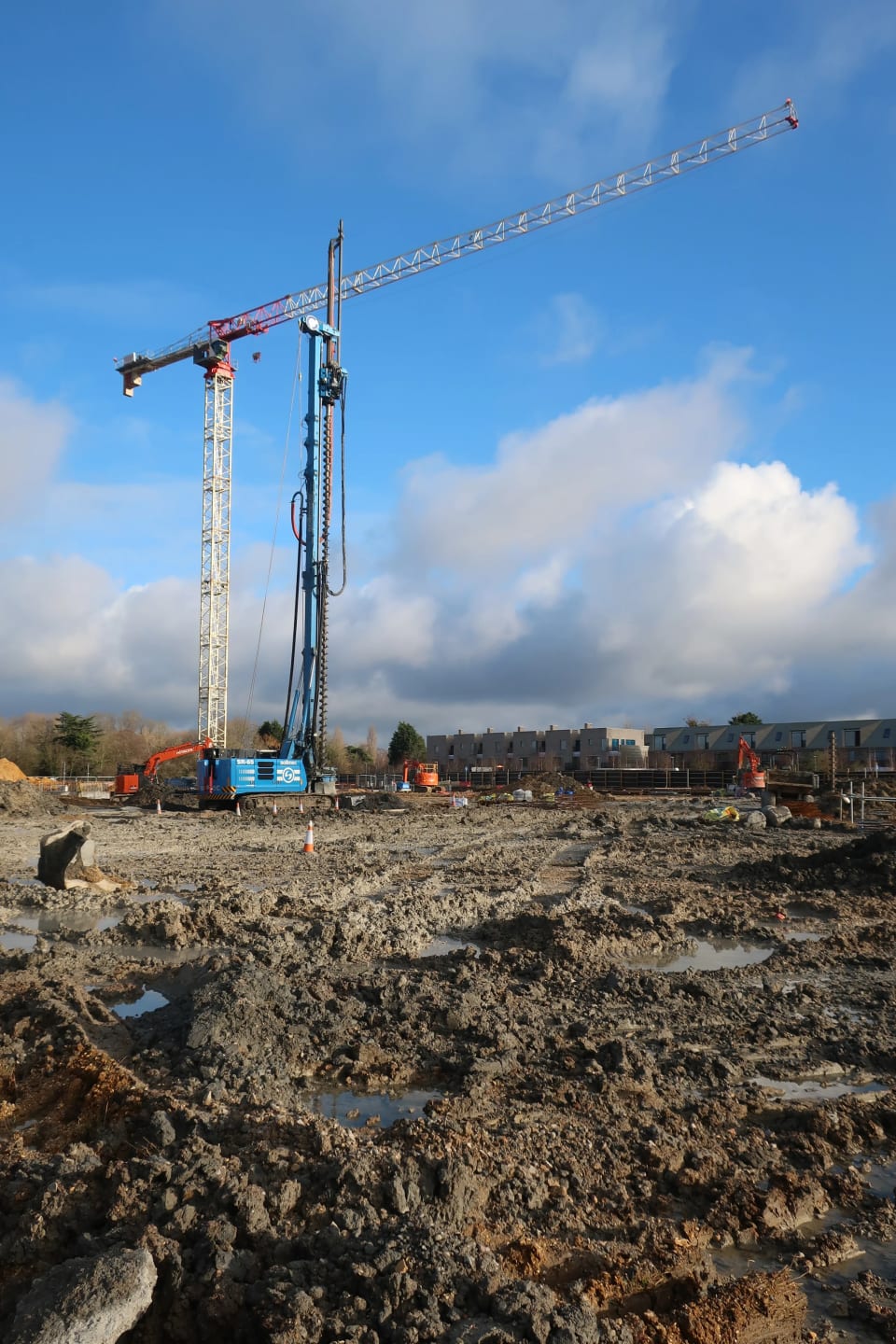

Dynamic load testing applies an impact or moving load and interprets the recorded response. On deep foundations this includes high-strain dynamic testing (HSDLT / PDA) for capacity; on structures it captures vibration behaviour that static tests cannot show.

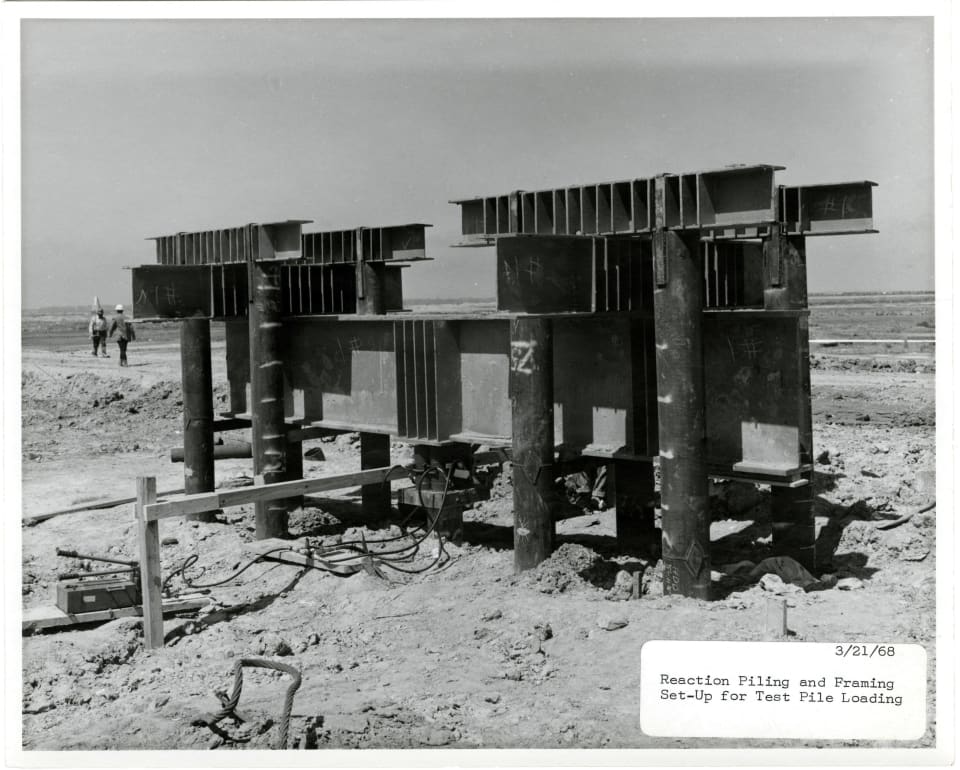

These in-situ tests apply controlled loads and measure the resulting displacement. Static vertical and lateral load tests verify foundation response, plate load tests characterise the bearing and stiffness of the ground, and pull-out tests verify resistance to uplift.

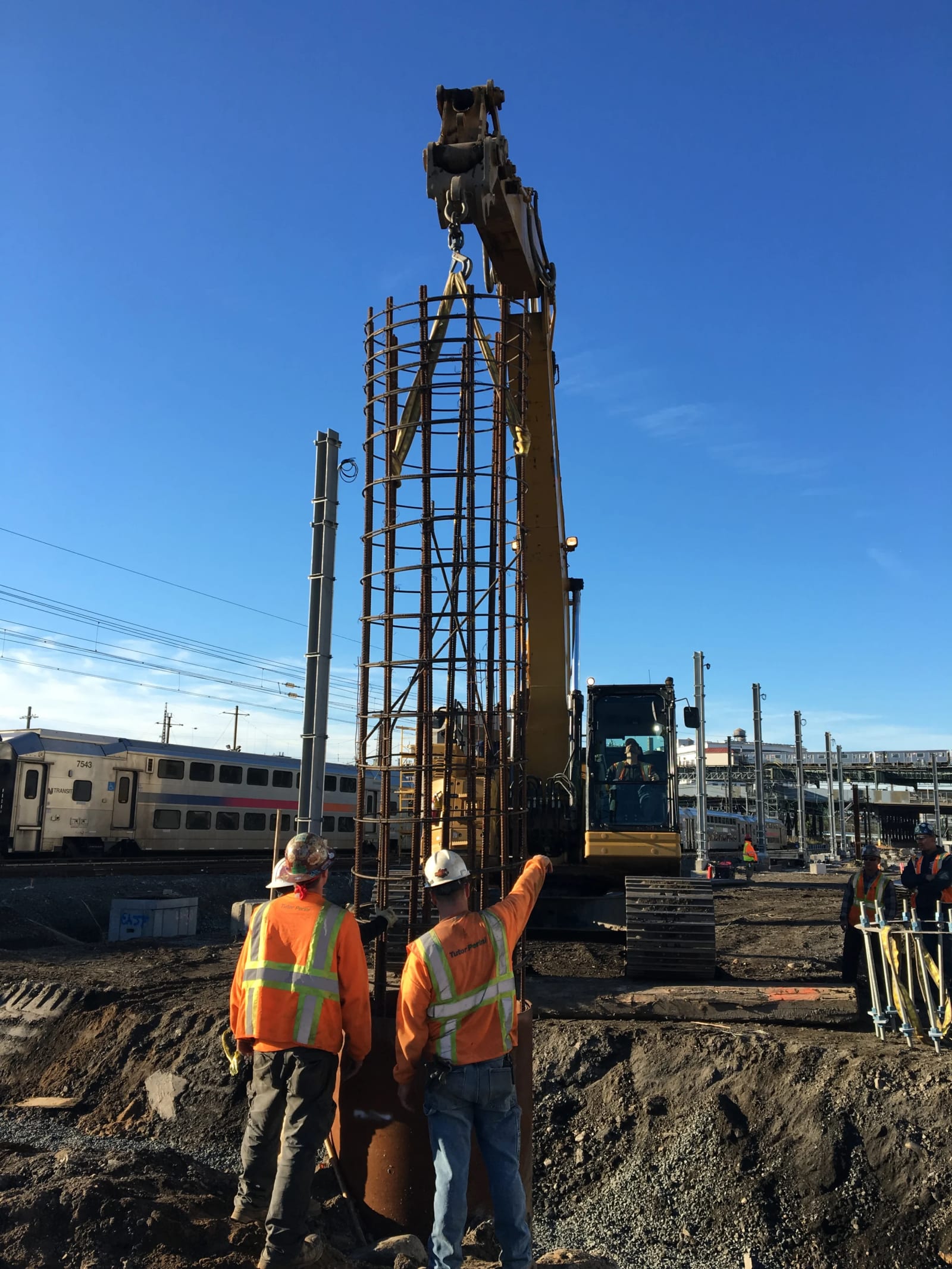

Piles are fitted with strain gauges or similar sensors at selected levels before testing. During loading the readings show how load is transferred along the shaft and to the base, giving more insight than head-settlement data alone.

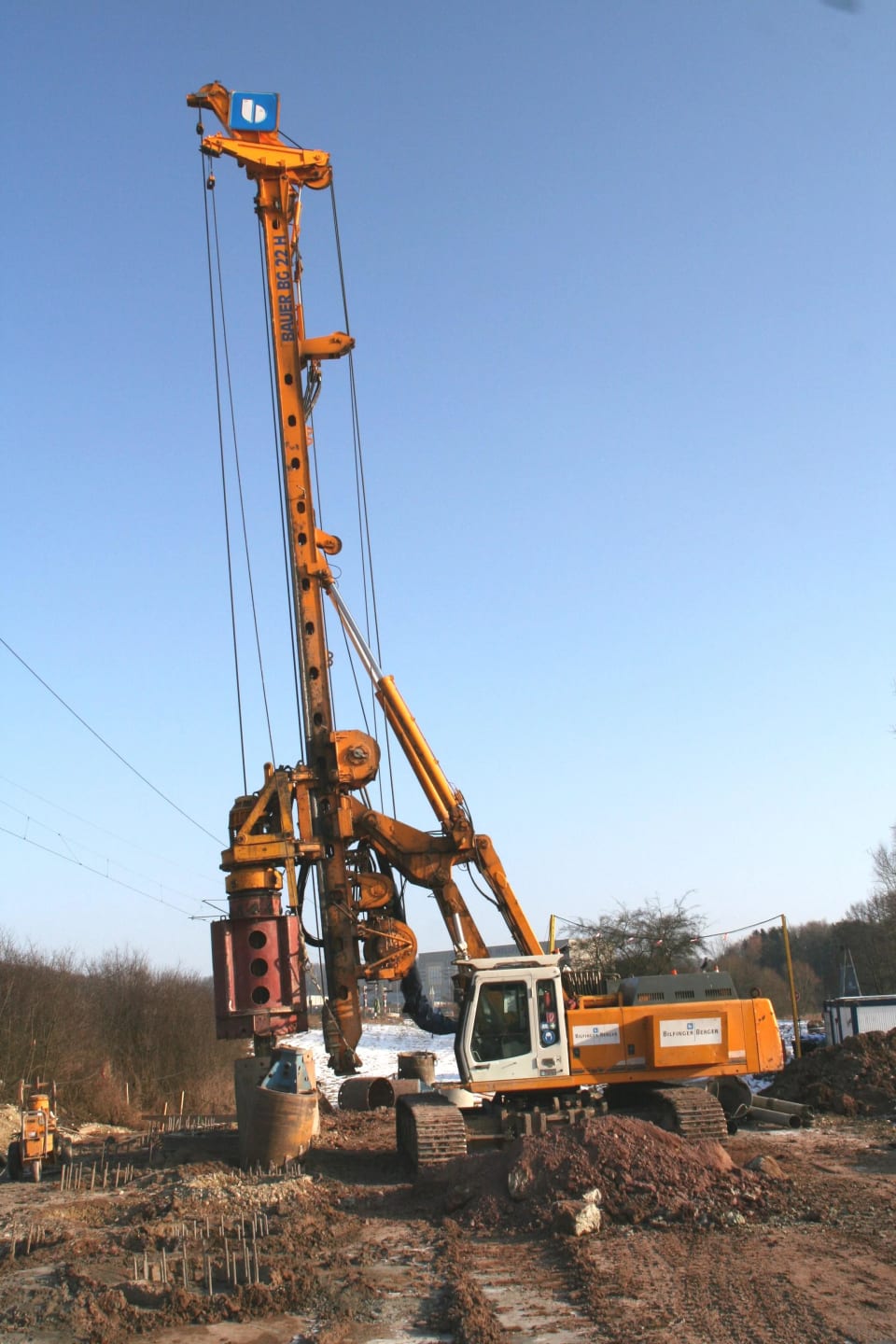

A hydraulic jack cell is placed within the pile; it pushes the upper shaft up and the lower shaft and base down so the two portions react against each other. High capacities can be tested without reaction piles or kentledge.

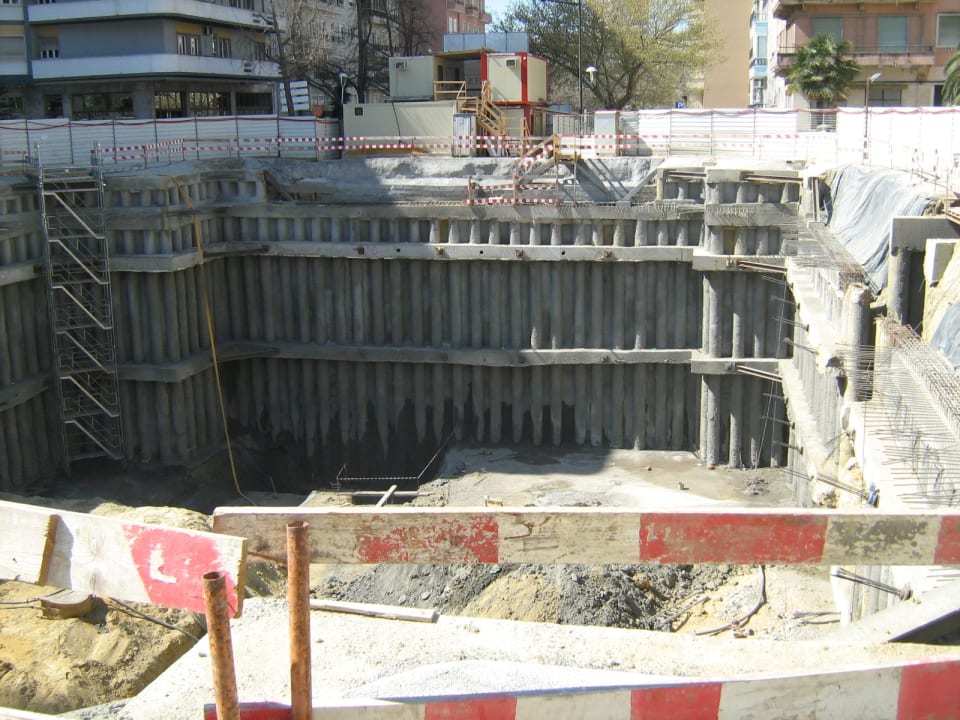

A light hammer blow on the pile head generates a stress wave whose reflections are recorded and interpreted. Discontinuities such as necking, cracks or changes in section show up in the signal, allowing many piles to be screened quickly and non-destructively.

Access tubes are cast into the pile; a transmitter and receiver are lowered into different tubes and ultrasonic pulse travel time and energy are logged with depth. Defects appear as delays or energy loss, giving a detailed check of concrete integrity across the section.

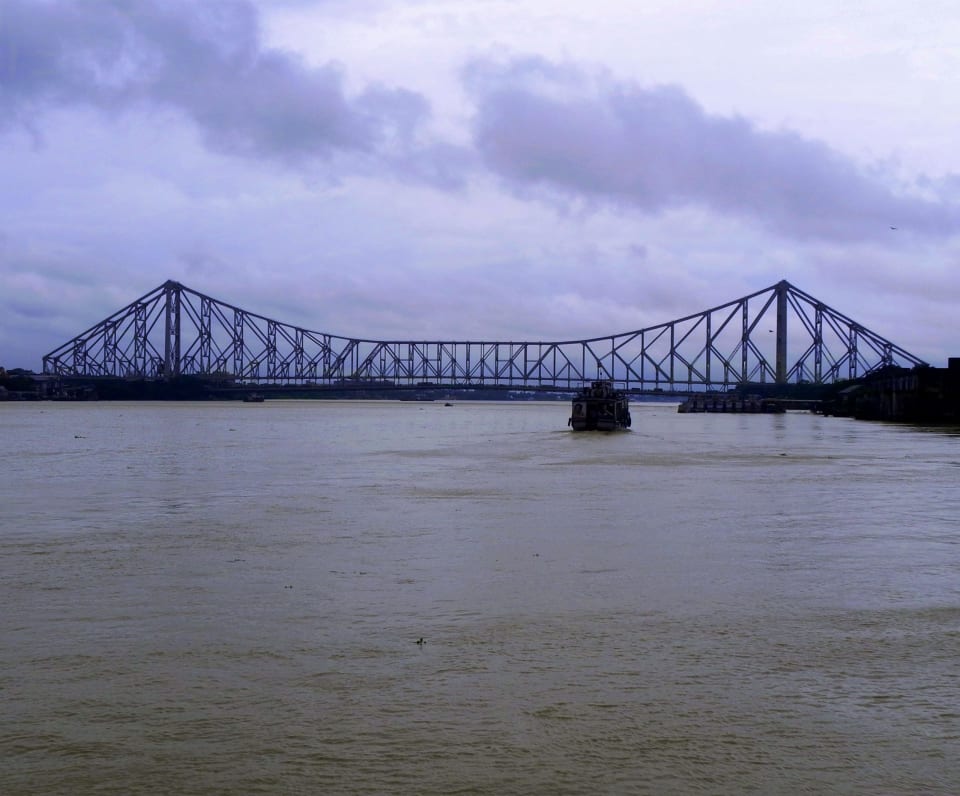

NDT/NDE methods are used to assess concrete quality and reinforcement condition in existing bridges without demolition. The findings help prioritise repairs and plan more detailed investigation where needed.

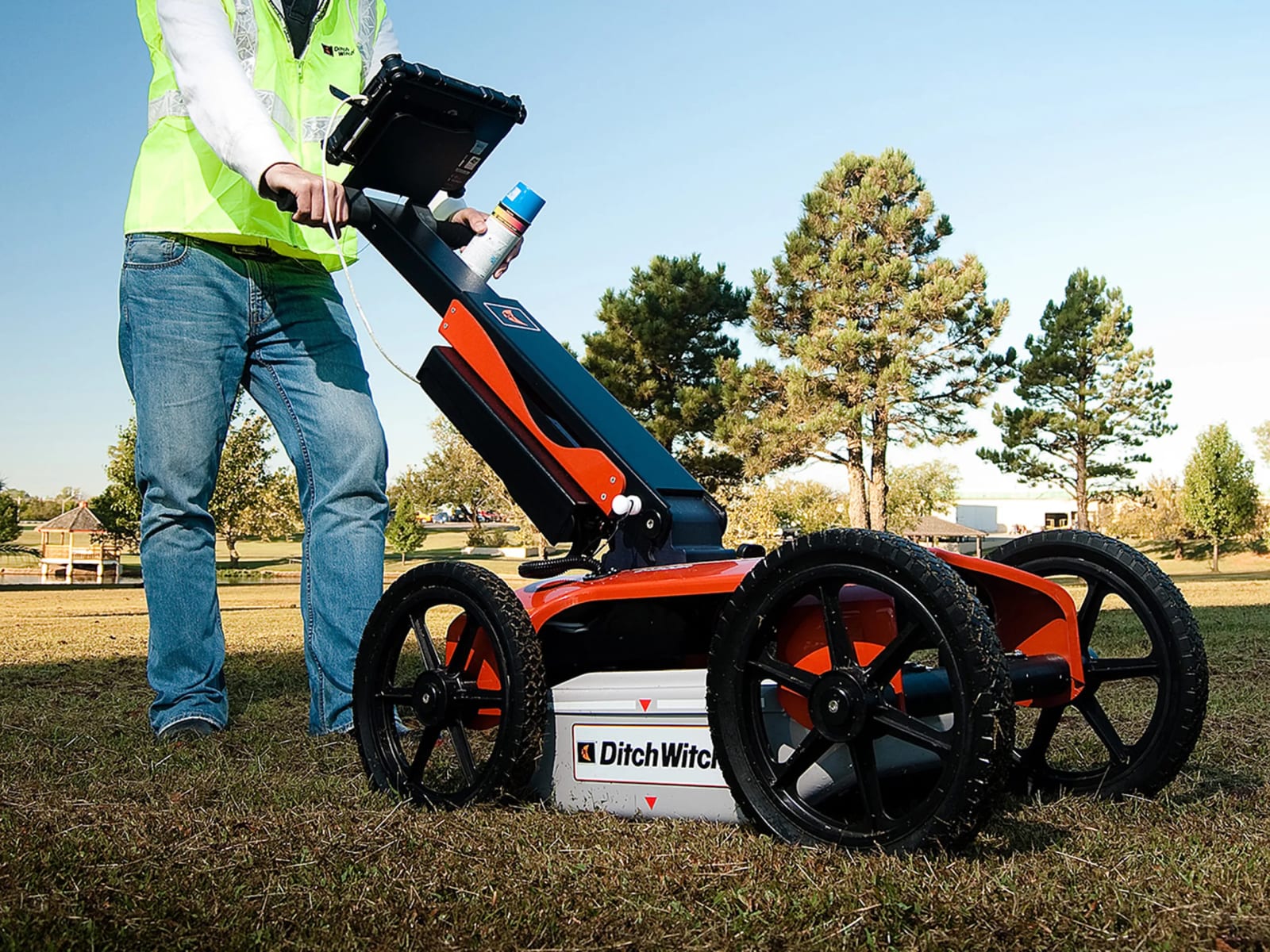

GPR sends electromagnetic pulses into concrete or soil and records reflections from interfaces. It is used to locate reinforcement, voids, utilities and layer boundaries without excavation.

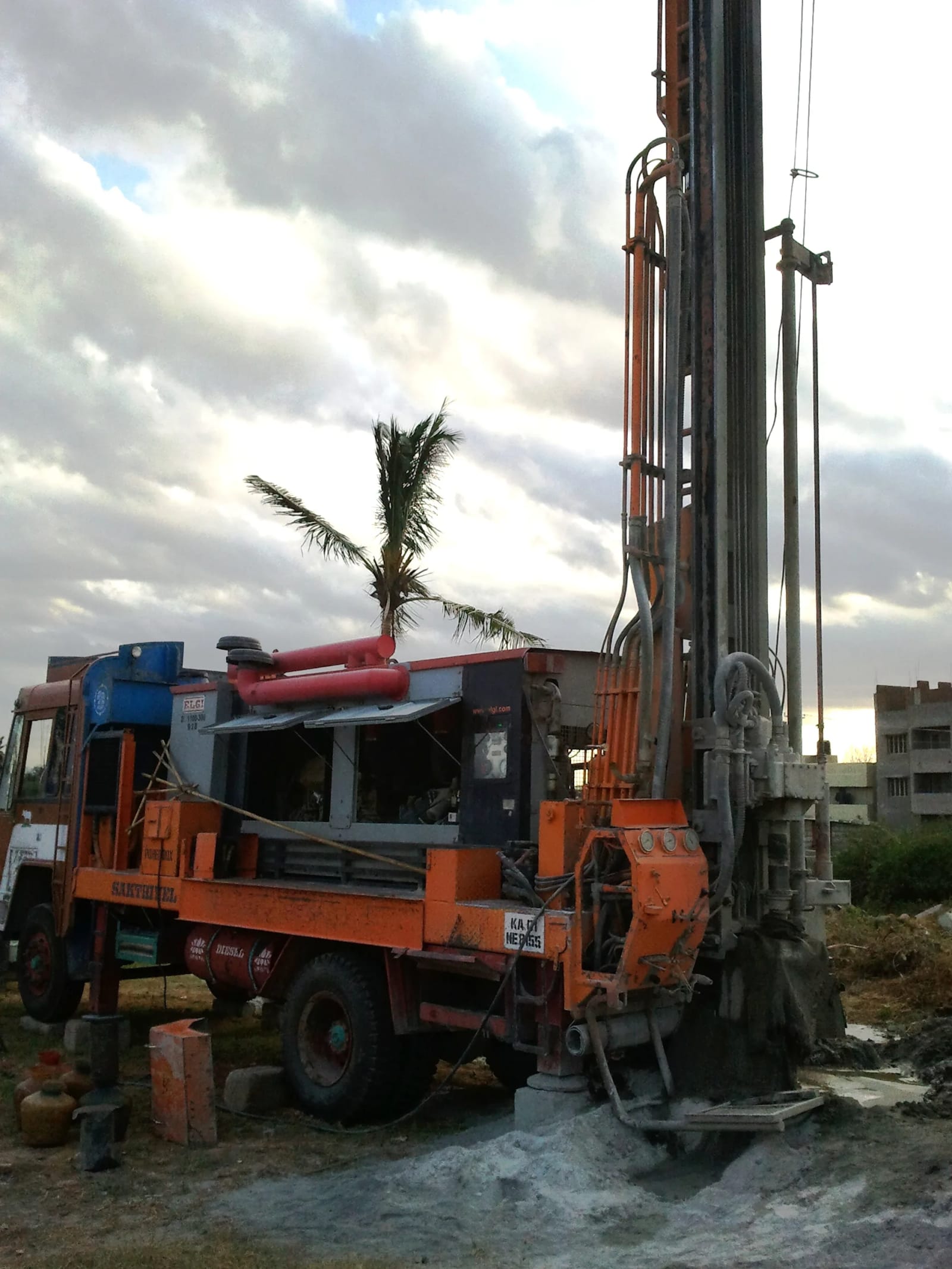

Ground characterisation informs safe, economical foundation and earthworks design. Soil exploration, standard penetration testing and laboratory investigation, carried out through MYTHCON's NABL-accredited testing laboratory (Certificate No. TC-12444), establish the ground conditions a project is actually built on.

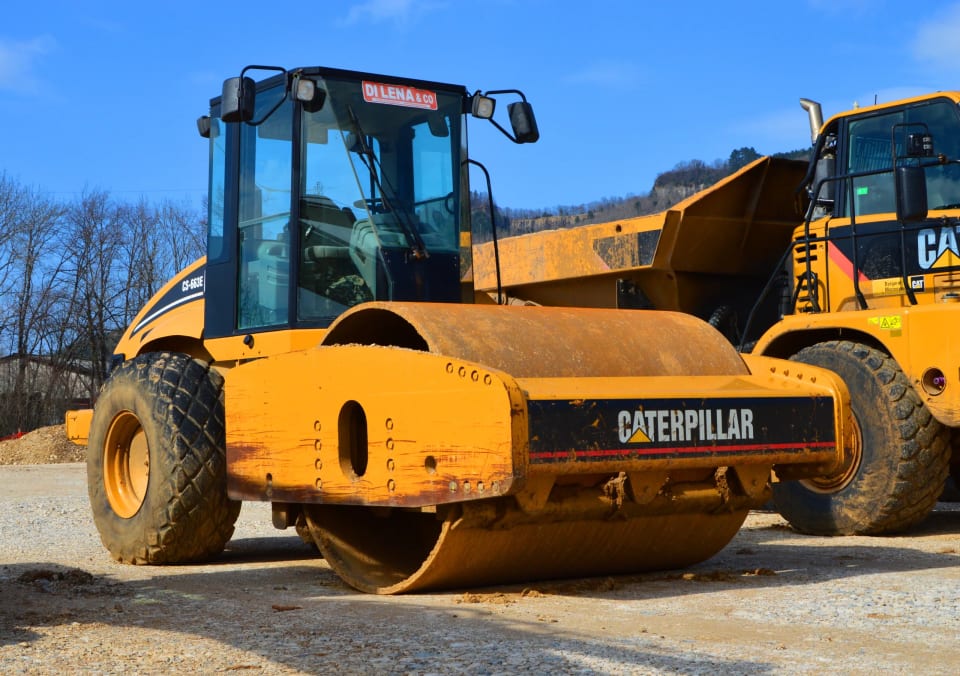

The EV2 modulus is derived from the second loading cycle of a plate load test and is widely used to check the stiffness and compaction of subgrade and embankment layers against specified minimum values.

Earth resistance testing measures how readily electrical current passes into the ground. It is used to verify earthing installations and to characterise subsurface conditions.

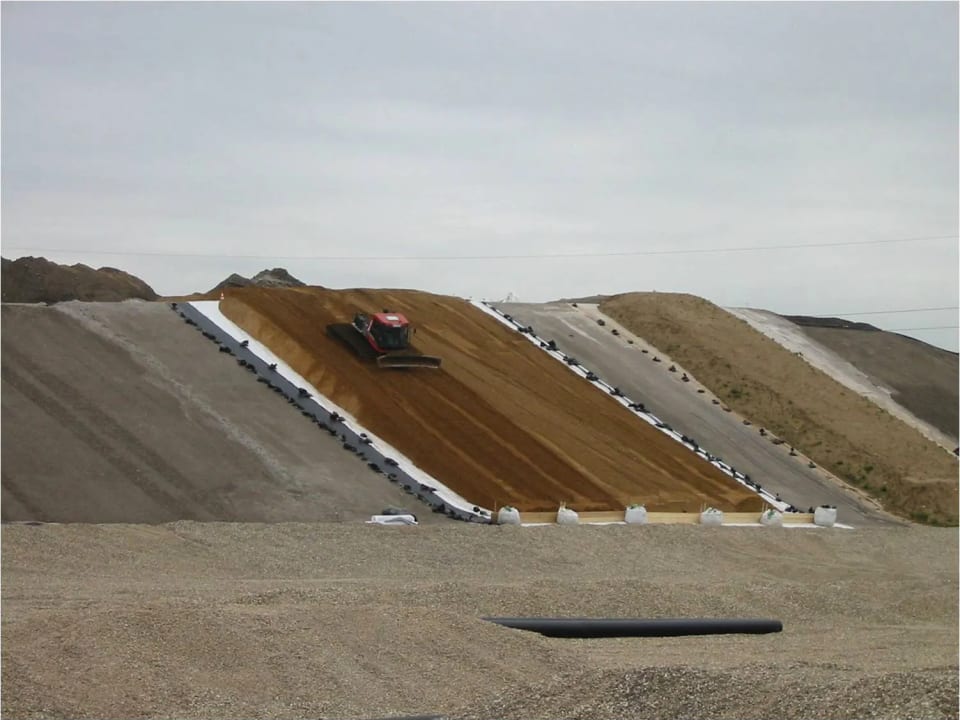

Prefabricated vertical drains (PVD) shorten drainage paths in soft, saturated soils so consolidation settlement occurs faster. Combined with soil reinforcement such as geosynthetics, they help make weak ground suitable for embankments and infrastructure.

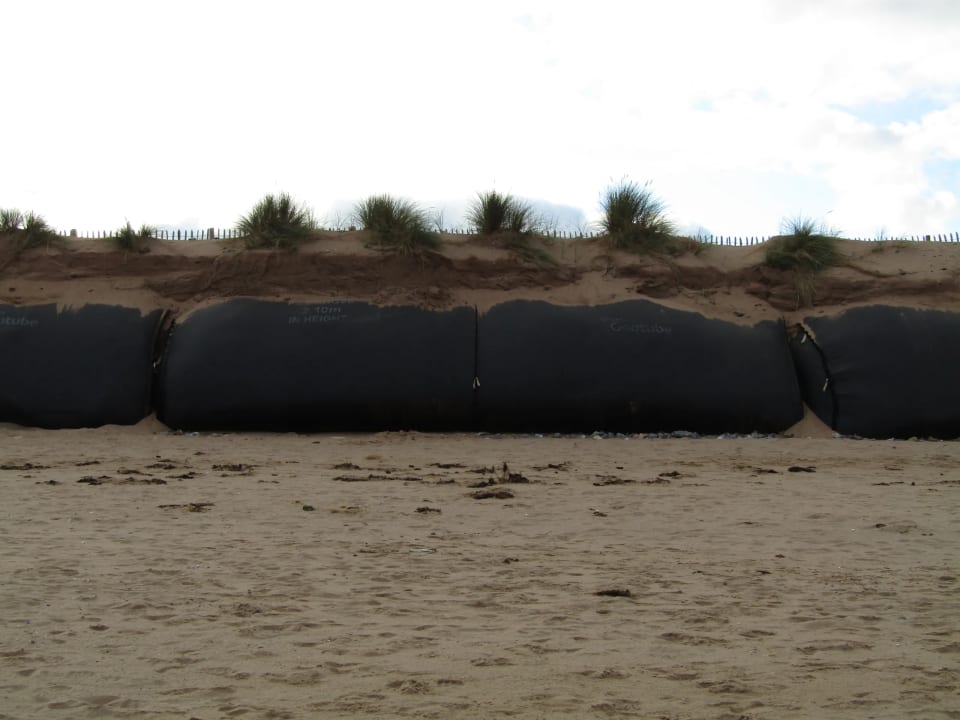

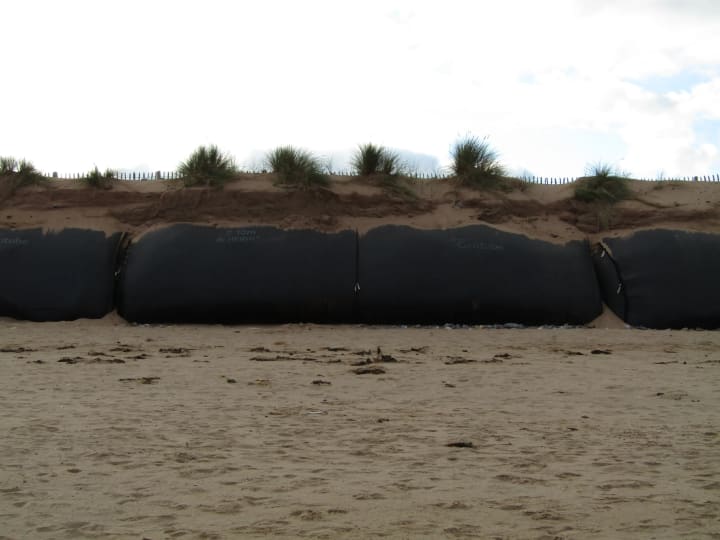

Geotextile tubes filled with sand or dredged material form flexible structures for river-bank and shoreline protection, dykes and containment. They adapt to settlement and can be combined with erosion-control geosynthetics.
